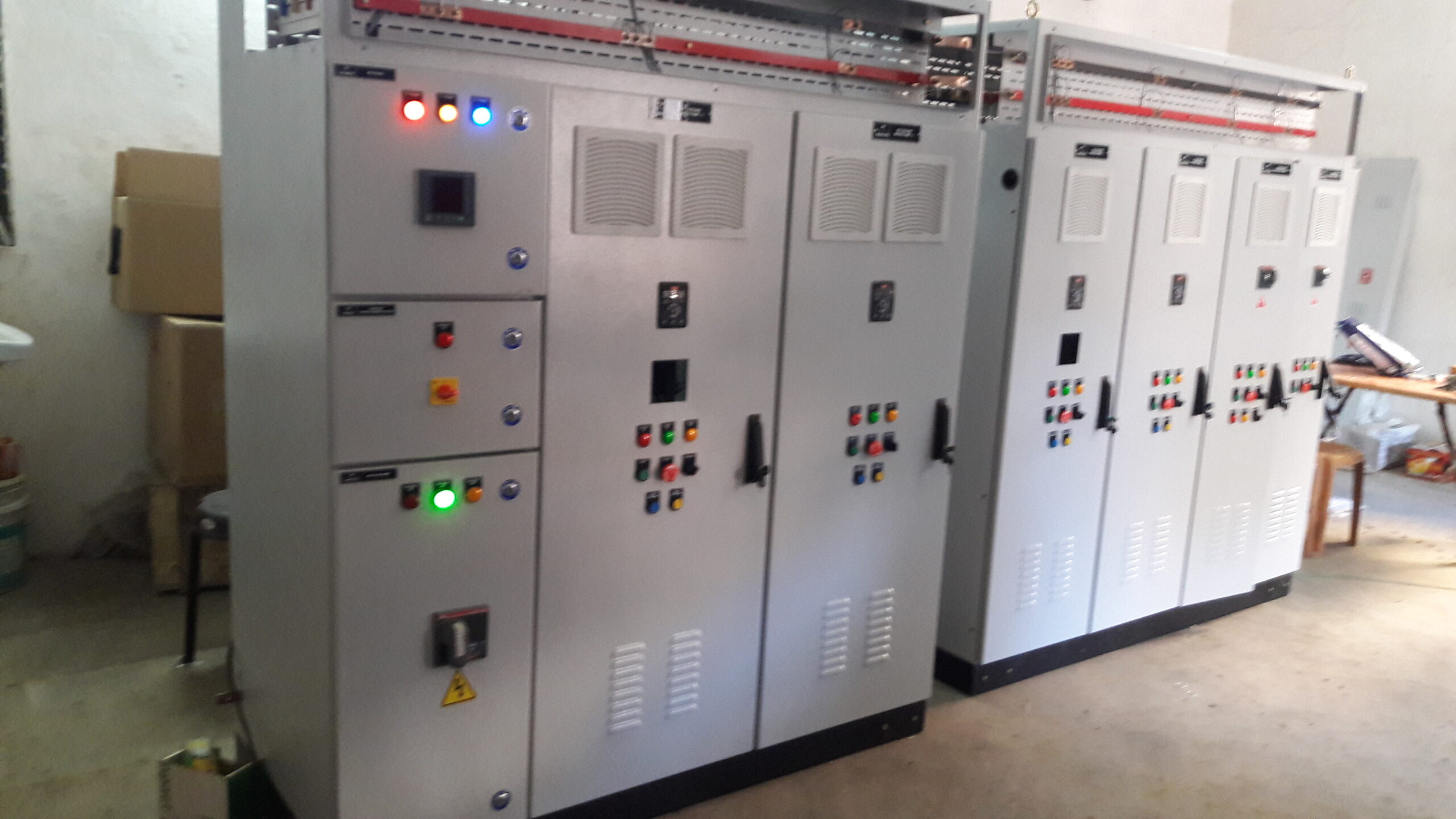

    • VFD-4-scaled

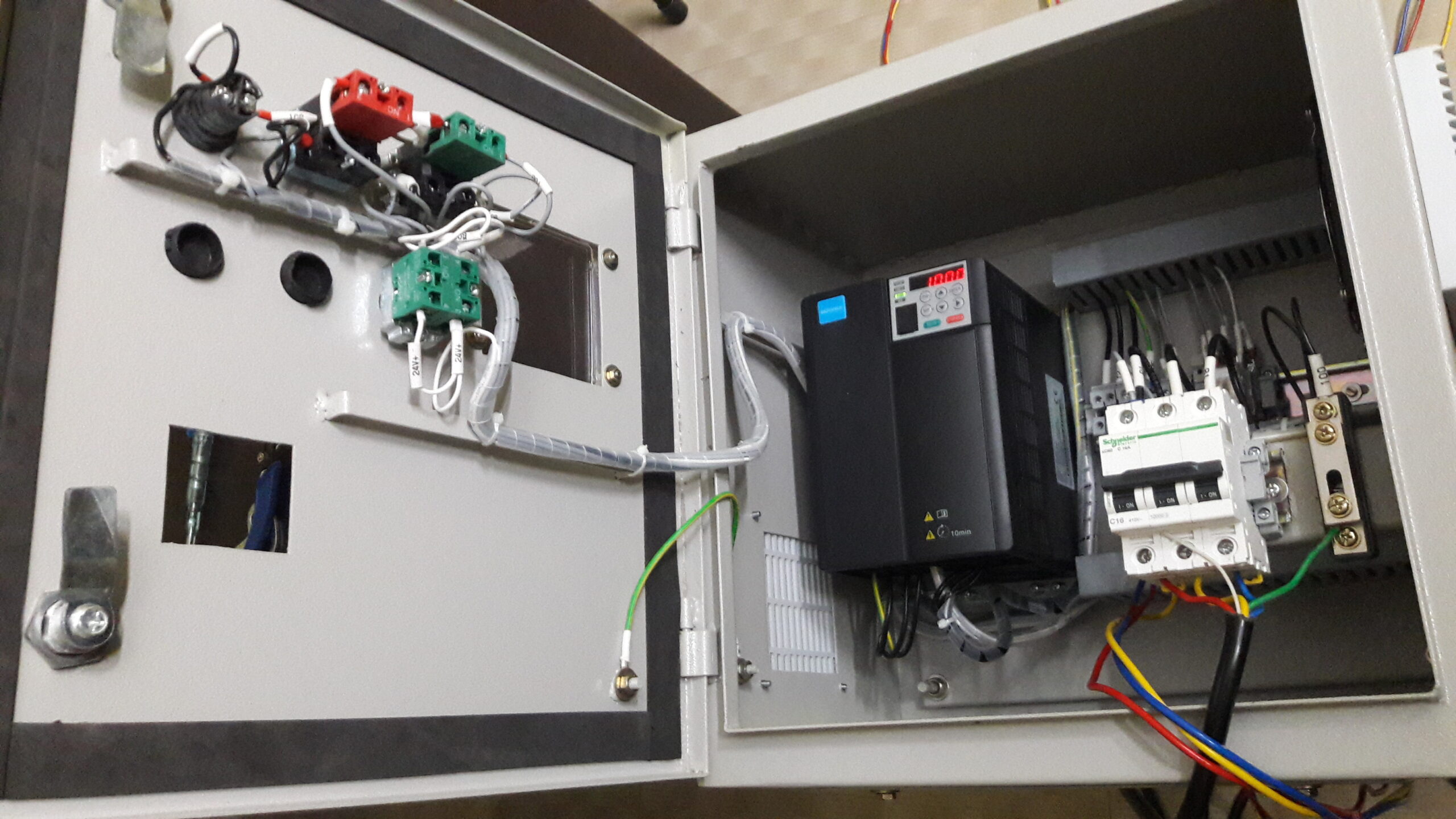

    VFD-6-scaled
    AS-1a

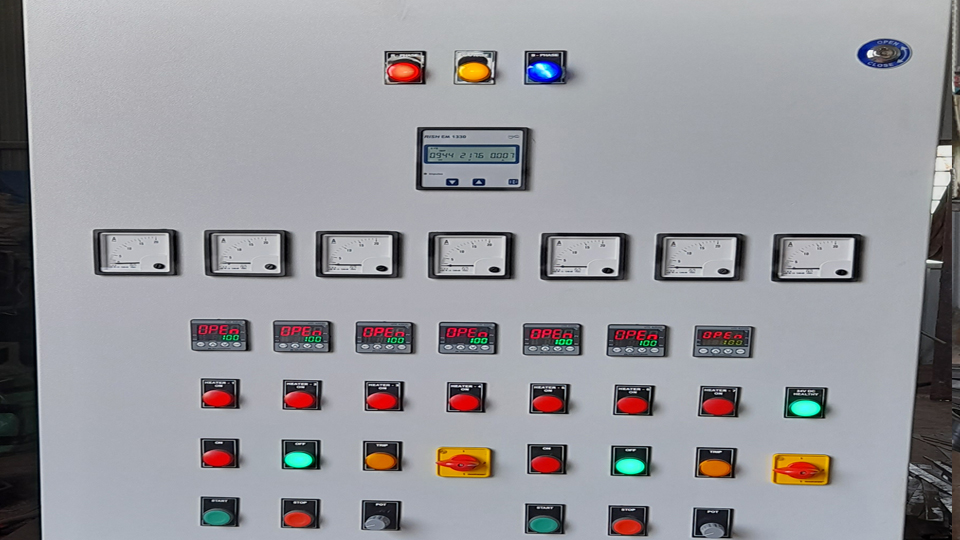

    VFD-8a

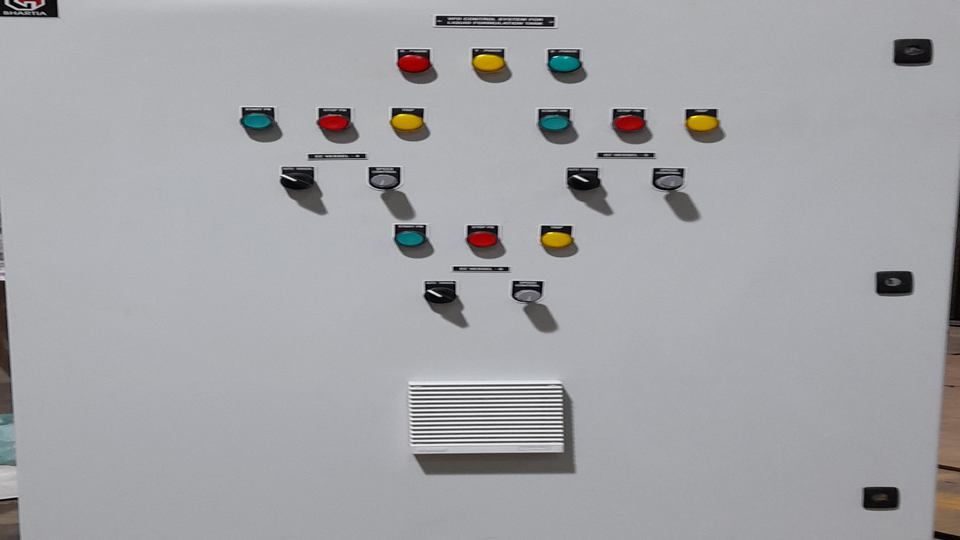

    VFD-9a
    vfd-contol-panel-image1-1
    vfd-contol-panel-image3

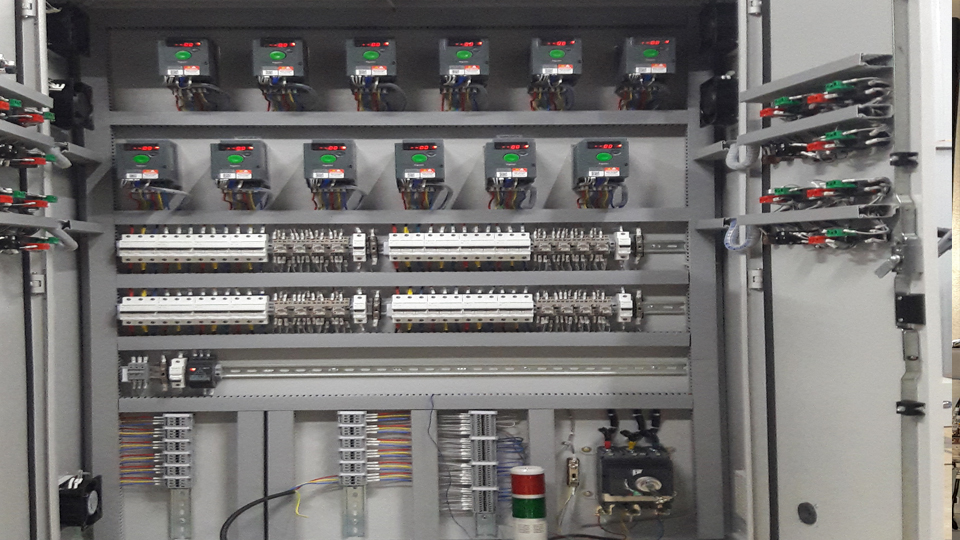

    VFD-2a

    We undertake service/ fault rectification of any brand of VFDs. We can do board level service at a very nominal costing. We have professional manpower for this work and deliver the drives with proper testing.

    MOTION CONTROLLER – AM521/AM522

    • Quad-core processor
    • EtherCAT real-time network
    • 2 expansion slots
    • 8 (AM521) or 16 (AM522) EtherCAT synchronized axes
    • Up to 127 EtherCAT slaves
    • 30 CANopen axes for PTP movements (optional card required)
    • 4 pulse axes
    • Axis group for linear and circular interpolation
    • 4 encoder inputs (8x high-speed inputs, up to 200 kHz)
    • Supports up to 16 GL20 local expansion modules
    • Supports up to 8 (AM521) or 16 (AM522) EtherCAT axes
    • I/O can be expanded by using EtherCAT bus coupler GL20-RTU-ECT

    BASIC PLC AC300

    • Crafted with a sleek design, ensuring remarkable space efficiency.
    • Onboard IO channels featuring relay and transistor output options.
    • Expansive IO options tailored for discrete machinery for simple applications.
    • Facilitate basic motion support through onboard I/O with PWM capabilities.
    • Built-in onboard RS232 & RS485 for seamless connectivity.
    • Equipped with an onboard Ethernet port for Modbus TCP/IP connectivity.
    • Free PLC engineering PC tool.
    • Optimized state-of-the-art programming IEC 61131-3 editors.

    GENERAL PLC PLC H3U

    • All-in-one CPU, power supply and I/O.
    • Basic instruction: 100ns/instruction.
    • Program capacity: 64K steps.
    • Device memory
      • Auxiliary Relays 9216 points
      • Timers 512 points
      • Counters 256 points
      • Data Registers 9552 points
      • File Registers 32768 points
    • High-speed inputs: 200kHz
    • High-speed outputs: 200kHz(Standard Model) 500kHz(Motion Control Model).
    • Interpolation: two-axis arc and straight line, three-axis straight line(Motion Control Model), spiral line(Motion Control Model)
    • Three-axis electronic cam(Motion Control Model).
    • Supports MODBUS-RTU & MODBUS-TCP & CANlink/CANopen modes.
    • Maximum of 192 digital I/O(local).
    • Programming language: Ladder, Instruction list, SFC

    GENERAL PURPOSE MICRO DRIVE MD 310

    • 4 to 18.5kW.
    • Wide operating voltage : Three Phase 380VAC, 323 to 456VAC.
    • Onboard MODBUS & optional CANlink.
    • Open loop V/F & SVC control; Staring torque of 150% at 0.5Hz(SVC) and 100% at 1Hz(V/F) ; Automatic torque boost.
    • Simplified parameter for easy start up
    • 4-Independent S-Ramps
    • Output frequency 500Hz
    • Overload : 150% for 60 Sec & 180% for 3 Sec
    • In-Built Dynamic braking unit

    HIGH PERFORMANCE UNIVERSAL DRIVE MD 520

    • 3 Ph 380-480 Vac: 0.4 to 500 kW.
    • 3 Ph 200-240 Vac: 0.4 to 90 kW.
    • 1 Ph 200-240 Vac: 0.4 to 2.2 kW.
    • Operation in high ambient temperatures – up to 50degC.
    • Built-in DC reactor (400 V: 18.5 kW and above; 200 V: 11 kW and above.
    • Conformal coated PCBs compliant to 3S2 and 3C3 environments.
    • Complies to efficiency level IE2 as defined in IEC 61800-9-2.
    • Control modes: V/f for induction motor, Sensorless vector control (SVC), closed loop vector control (FVC) for both induction (asynchronous) and PMS motors.
    • Starting torque; 150% at 0.25 Hz for SVC; 180% at 0 Hz for FVC.
    • Communication options: Modbus-RTU, PROFIBUS-DP, CANopen, CANlink, PROFINET, EtherCAT, Ethernet/IP.
    • Brake control logic; inbuilt brake resistor upto 90kW.
    • Application dedicated functions: Centre winder, Textile wobble control, Master slave function. 4 motor parameter sets.
    • Bipolar analog input as standard (-10 to +10 V); PTC input as standard.
    • Output frequency: 599 Hz.
    • Encoder feedback (option): Incremental (HTL, Line Driver), Resolver, Serial encoder.

    SINGLE AXIS SERVO SV660P-PULSE TYPE,SV660P-ETHERCAT

    • Ultra-fast 4.5 kHz current loop.
    • Safe Torque Off – SIL3.
    • High speed EtherCAT communications – 125 μs.
    • 23 bit High resolution feedback encoder.
    • Short output winding Standard, built-in, short output winding ensures safe braking if the drive is unexpectedly disabled – even in the case of a failure in the motor holding brake.
    • Comprehensive data storage in case of failure.

    HIGH PERFORMANCE GENERAL PURPOSE DRIVE MD290

    • 4 to 500kW, Three Phase 380 to 480VAC.
    • Optional MODBUS-RTU, CANlink, Profibus-DP, CANopen.
    • Open loop V/F; Automatic torque boost.
    • 4-Independent S-Ramps
    • Output frequency 500Hz
    • Overload : 110% for normal duty and 150% for 60 Sec for heavy duty.
    • In-Built Dynamic braking unit upto 18.5kW
    • Built-in DC reactor EN61800-3 Category C2 2nd Environment.

    HMI IT7000

    • 3 Ph 380-480 Vac: 0.4 to 500 kW.
    • 3 Ph 200-240 Vac: 0.4 to 90 kW.
    • 1 Ph 200-240 Vac: 0.4 to 2.2 kW.
    • Operation in high ambient temperatures – up to 50degC.
    • Built-in DC reactor (400 V: 18.5 kW and above; 200 V: 11 kW and above.
    • Conformal coated PCBs compliant to 3S2 and 3C3 environments.
    • Complies to efficiency level IE2 as defined in IEC 61800-9-2.
    • Control modes: V/f for induction motor, Sensorless vector control (SVC), closed loop vector control (FVC) for both induction (asynchronous) and PMS motors.
    • Starting torque; 150% at 0.25 Hz for SVC; 180% at 0 Hz for FVC.
    • Communication options: Modbus-RTU, PROFIBUS-DP, CANopen, CANlink, PROFINET, EtherCAT, Ethernet/IP.
    • Brake control logic; inbuilt brake resistor upto 90kW.
    • Application dedicated functions: Centre winder, Textile wobble control, Master slave function. 4 motor parameter sets.
    • Bipolar analog input as standard (-10 to +10 V); PTC input as standard.
    • Output frequency: 599 Hz.
    • Encoder feedback (option): Incremental (HTL, Line Driver), Resolver, Serial encoder.

    PREMIUM INDUSTRIAL DRIVES ACS880

    • ACS880 drives are designed for customers who value high quality and robustness in their applications. coated boards and high enclosure classes, making the ACS880 suitable for harsh conditions.
    • Additionally, every ACS880 drive is factory-tested at full load to ensure maximum reliability.
    • The tests include performance and all protective functions.
    • Nine-year maintenance interval.
    •  ABB’s signature DIRECT TORQUE CONTROL (DTC), which provides precise speed and torque control for all applications and supports virtually any type of motor.
    • Global product approvals, e.g. CE, UL, cUL, CSA, marine certifications, ATEX, marine
    • Regenerative drives, ultra-low harmonics drives, liquid cooled drives,
    • Speed, torque and position control as well as synchronizing
    • Ready-made optimized solutions for various applications and industries
    •  Special application softwares for EOT cranes, tower cranes, winches, artificial oil lifting, tunnel ventilation, position control, textile, test bench, centrifuge, decanter,

    PREMIUM GENERAL PURPOSE DRIVES ACS580

    • 0.75kW to 500kW.
    • Part of all-compatible drives portfolio.
    • IP21, IP55, IP55 with switch and fuse.
    • Built-in features such as EMC C2 filter, choke, Modbus RTU fieldbus interface and safe torque off functionality.
    • The ATEX-certified thermistor protection module option CPTC-02.
    • IE2 drive (EN 50598-2) energy efficiency class, further reducing environmental impact.
    • ACS580 are compatible with high-efficiency IE4.
    • Side-by-side mounting, flange mounting and horizontal mounting are all available for wall-mounted ACS580 drives

    GENERAL PURPOSE DRIVES ACS560

    ACS560 General Purpose Drive Product Image

    • Ultra-fast 4.5 kHz current loop.
    • Safe Torque Off – SIL3.
    • High speed EtherCAT communications – 125 μs.
    • 23 bit High resolution feedback encoder.
    • Short output winding Standard, built-in, short output winding ensures safe braking if the drive is unexpectedly disabled – even in the case of a failure in the motor holding brake.
    • Comprehensive data storage in case of failure.

    MICRO MACHINERY DRIVES ACS380

    ACS380 Machinery Drive
    • 0.25kW to 22kW.
    • Part of all-compatible drives portfolio.
    • Built-in EMC filters.
    • IP20 enclosure and coated circuit boards.
    • Unique 3-phase measurement – reliable earth fault protection.
    • Galvanically isolated fieldbus gives good noise immunity.
    • Ambient temperature of up to 50°C without derating.
    • Foil coated control panel – protection against dust and gases.
    • Adaptive programming – sequential or block programming.
    • High starting torque, accurate speed control, stable torque or tolerance for sudden load variations with or without encoder feedback.
    • Simple positioning applications when using external motion controller.
    • Supports perfectly both induction and permanent magnet motors.
    • Silent motor operation with energy optimizer.
    • Fast stop functions and parabolic speed reference
    • Load profile log, which shows you how the drive has been used.

    MACHINERY DRIVES ACS180

    ACS180 machinery drive
    • 4 to 18.5kW.
    • Wide operating voltage: Three Phase 380VAC, 323 to 456VAC.
    • Onboard MODBUS & optional CANlink.
    • Open loop V/F & SVC control; Starting torque of 150% at 0.5Hz (SVC) and 100% at 1Hz (V/F); Automatic torque boost.
    • Simplified parameter for easy startup
    • 4-Independent S-Ramps
    • Output frequency 500Hz
    • Overload: 150% for 60 Sec & 180% for 3 Sec
    • In-Built Dynamic braking unit

    MID RANGE PREMIUM PLC – EASY PLC

    • Compact footprint.
    • PLC open compliant axis control.
    • Simulation mode for offline debugging.
    • Real-time fieldbus.
    • The type-C programming port.
    • Easy wiring with spring clamp terminals.
    • Slim and compact I/O expansion modules (GL20). Easy to plug in and remove for fast replacement.
    • CPU Easy301 - Cost-effective architecture using Modbus RTU communication and/or pulses to control the drives.
    • CPU Easy302 - Flexible architecture using CANopen communication and/or pulses to control the drives.
    • CPU Easy320 - Multiprotocol architecture using Ethernet/IP, CANopen communication and/or pulses to control the drives, and Modbus TCP with the HMI touchpanel.
    • Program storage: 128kB/200kB.
    • Data storage: 1Mb/2Mb.
    • Instruction execution time: 20k steps/2ms.
    • Programming languages: LD, SFC, ST, FB/FC.
    • Power supply: 24VDC.

    PREMIUM PLC – AC500

    • The scalability of the AC500 PLCs is achieved by offering a large variety of devices to design and implement configurations suitable for simple control tasks or complex automation solutions.
    • The AC500 PLC provides action flexibility with one integrated software.
    • The AC500 PLC range consists of various CPUs, I/O modules, communication modules, communication interface modules, and accessories.
    • The “all modules used on any CPUs concept” in combination with our life cycle policy helps our customers to react quickly, flexibly, and economically to new requirements.
    • Our AC500 is designed to offer the needed easiness, security, and reliability to expand the automation system to new challenges.
    • The memory, performance, and networking capabilities mean more functionality, advanced visualization, and more operating comfort – for even better individual customer solutions.

    BASIC PLC H1U

    • All in one CPU and power supply supporting local and remote I/O.
    • 100 ns execution time per single, basic instruction.
    • Program capacity: 8 K steps.
    • Device memory
      • Auxiliary relays 3584 points
      • Timers 256 points
      • Counters 256 points
      • Data registers 8528 points
    • High speed inputs: up to 60 kHz.
    • High speed outputs: up to 100 kHz.
    • Supports RS485 (Modbus-RTU) and CANlink (Inovance proprietary) communication.
    • Maximum of 60 digital I/O (local), supports up to 30 remote modules (CANlink 3.0).
    • Programming language conforms to IEC 61131-3.
    • Ladder diagram (LD)/ Instruction list (IL)/ Sequential function chart (SFC).

    GENERAL PURPOSE MICRO DRIVE ACS200

      • 0.4 to 2.2kW single phase; 0.75kW to 3.7kW three phase.
      • Wide operating voltage : Single Phase 170 to 264VAC; 3-phase 323V to 528V.
      • Internal EMC Filter; complies with EN61800-3 Category C2 2nd Environment
      • Open loop V/F control; Staring torque of 150% at 3Hz; Automatic torque boost.
      • Modbus or CANLinkcomms
      • Output frequency 500Hz
      • Overload : 150% for 60 Sec & 180% for 3 Sec
      • In-Built Dynamic braking unit
      • Side-by-Side/ Wall Mounted/ DIN Rail Mounted

    MICRO MACHINERY DRIVES ACS355

    ACS355 Micro Drive Product Image

    • 0.25kW to 22kW.
    • Quick commissioning – application macros and panel assistants.
    • Safe torque off function (SIL3) as standard.
    • Sensorless vector control for induction motors and permanent magnet motors up to 599 Hz.
    • Built-in braking chopper.
    • IP66 and solar pump drive variant available.

    MICRO DRIVES ACS150

    ACS150 Micro Drive Product Image

    • Power range 0.37 to 4 kW/0.5 to 5 Hp
    • PID control, fixed keypad and speed control potentiometer
    • IP20 enclosure
    • Scalar control
    • Built-in brake chopper and Built-in EMC filter for 2nd environment
