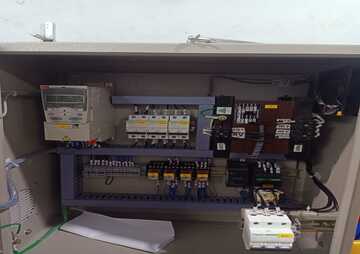

Micro P 2hp 2
Ramtech 25hp I
Ramtech 30hp I
VFD (2)
VFD (12)
Previous
Next
ACS 150
ACS 150
ACS 180
ACS 180
ACS 355
ACS 355
ACS 560
ACS 560
ACS 580
ACS 580
ACS 880
ACS 880
Previous
Next
aab-image1
aab-image2
aab-image3
aab-image4
ABB
Guild
Micro P 2hp 2
Ramtech 25hp I
Ramtech 30hp I
VFD (12)
Previous
Next

MICRO DRIVES, ACS150

  1. Power range 0.37 to 4 kW/0.5 to 5 Hp
  2. PID control, fixed keypad and speed control potentiometer
  3. IP20 enclosure
  4. Scalar control
  5. Built-in brake chopper and Built-in EMC filter for 2 nd environment

MACHINERY DRIVES, ACS180

  1. 0.25kW to 22kW
  2. Part of all-compatible drives portfolio
  3.  Adaptive and sequence programming instead of simple PLC.
  4. Built-in EMC filter for industrial or domestic environments.
  5. Side-by-side installation, quick commissioning – graphical user interface, simple parameter structure and spring control terminals.
  6. Highly reliable – coated circuit boards, minimized airflow through the electronics, reliable earth fault protection, design for a 60 °C ambient temperature.
  7. Modbus RTU interface and Remote Bluetooth connectivity
  8. Safe torque off (SIL 3, PL e)

MACHINERY DRIVES, ACS180

  1. 0.25kW to 22kW
  2. Part of all-compatible drives portfolio
  3.  Adaptive and sequence programming instead of simple PLC.
  4. Built-in EMC filter for industrial or domestic environments.
  5. Side-by-side installation, quick commissioning – graphical user interface, simple parameter structure and spring control terminals.
  6. Highly reliable – coated circuit boards, minimized airflow through the electronics, reliable earth fault protection, design for a 60 °C ambient temperature.
  7. Modbus RTU interface and Remote Bluetooth connectivity
  8. Safe torque off (SIL 3, PL e)

MICRO MACHINERY DRIVES, ACS355

  1. 0.25kW to 22kW.
  2. Quick commissioning – application macros and panel assistants.
  3. Safe torque off function (SIL3) as standard.
  4. Sensorless vector control for induction motors and permanent magnet motors up to 599 Hz.
  5. Built-in braking chopper.
  6. IP66 and solar pump drive variant available

MICRO MACHINERY DRIVES, ACS380

  1. 0.25kW to 22kW.
  2. Part of all-compatible drives portfolio.
  3. Built-in EMC filters.
  4. IP20 enclosure and coated circuit boards.
  5. Unique 3-phase measurement – reliable earth fault protection.
  6. Galvanically isolated fieldbus gives good noise immunity.
  7. Ambient temperature of up to 50°C without derating.
  8. Foil coated control panel – protection against dust and gases.
  9.  Adaptive programming – sequential or block programming.
  10. High starting torque, accurate speed control, stable torque or tolerance for suddenload variations with or without encoder feedback.
  11. Simple positioning applications when using external motion controller.
  12. supports perfectly both induction and permanent magnet motors.
  13. Silent motor operation with energy optimizer.
  14. Fast stop functions and parabolic speed reference
  15. Load profile log, which shows you how the drive has been used.

MICRO MACHINERY DRIVES, ACS380

  1. 0.25kW to 22kW.
  2. Part of all-compatible drives portfolio.
  3. Built-in EMC filters.
  4. IP20 enclosure and coated circuit boards.
  5. Unique 3-phase measurement – reliable earth fault protection.
  6. Galvanically isolated fieldbus gives good noise immunity.
  7. Ambient temperature of up to 50°C without derating.
  8. Foil coated control panel – protection against dust and gases.
  9.  Adaptive programming – sequential or block programming.
  10. High starting torque, accurate speed control, stable torque or tolerance for suddenload variations with or without encoder feedback.
  11. Simple positioning applications when using external motion controller.
  12. supports perfectly both induction and permanent magnet motors.
  13. Silent motor operation with energy optimizer.
  14. Fast stop functions and parabolic speed reference
  15. Load profile log, which shows you how the drive has been used.

GENERAL PURPOSE DRIVES, ACS560

  1. 0.75kW to 160kW
  2. Integrated Modbus RTU interface, brake chopper upto 22kW, safe torque off, DC choke >11kW, EMC filter, digital and analog IO's.
  3. Energy optimizer help you save energy and energy efficiency information helps you monitor consumption, savings and CO2 reduction.
  4.  ACS560 uses protective coated circuit boards and individual air-cooling lanes, all 3- phase current measurement. ACS560 designed to work up to +55 deg C ambient with derating.
  5. Modbus RTU as standard, optional Profibus, Profinet, EtherCat, Canopen and Modbus TCP.
  6. Macros for plastic extrusion, pharma segments, textiles and always demanding PFC, SPFC, PID control macros.
  7. The built-in energy optimizer and energy efficiency information help to save energy.
  8. Backward compatibility : ACS550 to ACS560; guide available for ACS550/ACS310 application conversion.

GENERAL PURPOSE DRIVES, ACS580

  1. 0.75kW to 500kW.
  2. Part of all-compatible drives portfolio.
  3. IP21, IP55, IP55 with switch and fuse.
  4. Built-in features such as EMC C2 filter, choke, Modbus RTU fieldbus interface and safe torque off functionality.
  5. The ATEX-certified thermistor protection module option CPTC-02.
  6. IE2 drive (EN 50598-2) energy efficiency class, further reducing environmental impact.
  7. ACS580 are compatible with high-efficiency IE4.
  8. Side-by-side mounting, flange mounting and horizontal mounting are all available for wall-mounted ACS580 drives.

GENERAL PURPOSE DRIVES, ACS580

  1. 0.75kW to 500kW.
  2. Part of all-compatible drives portfolio.
  3. IP21, IP55, IP55 with switch and fuse.
  4. Built-in features such as EMC C2 filter, choke, Modbus RTU fieldbus interface and safe torque off functionality.
  5. The ATEX-certified thermistor protection module option CPTC-02.
  6. IE2 drive (EN 50598-2) energy efficiency class, further reducing environmental impact.
  7. ACS580 are compatible with high-efficiency IE4.
  8. Side-by-side mounting, flange mounting and horizontal mounting are all available for wall-mounted ACS580 drives.

INDUSTRIAL DRIVES, ACS880

  1. ACS880 drives are designed for customers who value high quality and robustness in their applications. coated boards and high enclosure classes, making the ACS880 suitable for harsh conditions.
  2. Additionally, every ACS880 drive is factory-tested at full load to ensure maximum reliability.
  3. The tests include performance and all protective functions.
  4. Nine-year maintenance interval.
  5.  ABB’s signature DIRECT TORQUE CONTROL (DTC), which provides precise speed and torque control for all applications and supports virtually any type of motor.
  6. Global product approvals, e.g. CE, UL, cUL, CSA, marine certifications, ATEX, marine
  7. Regenerative drives, ultra-low harmonics drives, liquid cooled drives,
  8. Speed, torque and position control as well as synchronizing
  9. Ready-made optimized solutions for various applications and industries
  10.  Special application softwares for EOT cranes, tower cranes, winches, artificial oil lifting, tunnel ventilation, position control, textile, test bench, centrifuge, decanter,
